Synology FlashStation FS1018 12-Bay NAS – FS1018
FlashStation FS1018
Desktop form factor all-flash NAS designed for I/O-intensive and latency-sensitive applications
Overview
Extraordinary performance. Compact size.
The all-flash FS1018 supports up to 12 x 2.5” SATA SSDs in a desktop form factor. It is low latency and provides high IOPS for the most demanding work environments. It is ideal for running business applications like mail services, virtualization and latency-sensitive applications.
CPU
Dual-core Turbo Boost up to 2.6 GHz
Memory
8GB DDR4 ECC RAM, up to 32GB
High Performance
Over 40,000 iSCSI 4K random write IOPS
Scalability
Connect up to two DX1215 expansion units
Supercharge your storage with speedy performance
With four built-in Gigabit LAN ports, FS1018 is capable of performing Link Aggregation and failover. For environments requiring a higher speed, the addition of an Ethernet add-on card can increase data transmission to 10GbE.
-
10GbE
10GbE network capacity for bandwidth intensive environments
Note: Network adapter card needs to be purchased separately.
5 year warranty
Synology’s 5-year limited warranty provides hardware replacement and technical support via email and telephone services, maximizing your enterprises’ return on investment.
Synology Replacement Service (SRS)
SRS provides free advance replacement units as early as the next business day in selected regions, maximizing the service uptime for your mission-critical storage and ensuring your business continuity1. Know more about SRS.
RAID F1
Due to the peculiarities of SSD and RAID technology, a common challenge lies in how to prevent all of the drives from failing at the same time because of the evenly distributed workload. RAID F1 alleviates this problem with a specially designed algorithm to unevenly distribute workload to drives, enhancing the resilience of the storage pool and ensuring your data remains safe.
See the white paper for more technical details regarding RAID F1
Compared with traditional RAID, RAID F1 distributes uneven workload to SSDs to prevent all drives from wearing out simultaneously.
Next-generation file system for advanced data protection
The Btrfs file system introduces the most advanced storage technologies. It helps to prevent data corruption and reduce maintenance overhead with optimized snapshots. Btrfs ensures high-level data integrity, while taking advantage of flexible and efficient data protection and recovery tools.
Flexible Shared Folder and User Quota System provide comprehensive quota control on user accounts and shared folders
Snapshot Replication provides data protection that is able to be scheduled and saves storage capacity. It supports 1,024 shared folder backups and 65,000 system-wide snapshots
File- or folder-level data restoration accelerates data recovery and flexibility
Automatically self-healing files detect and recover corrupted files without user intervention
Virtual Machine Manager
Virtual Machine Manager enables you to test new software in sandboxes, isolate your customers’ machines, and increase the flexibility of your server. You can easily run Windows, Linux, and Virtual DSM on your Synology NAS by just a few steps.
Learn more about Virtual Machine Manager
Snapshots for virtual machines
Perfectly clone and restore a virtual machine within seconds.
Live migration
Seamlessly migrate Virtual DSM instances from a Synology NAS to another.
Multi-tenant environment
Create multiple isolated virtual machines for subsidiary business units or departments.
Fully certified storage virtualization solutions
Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.
Powered by Synology DSM
Snapshot Replication
Provides schedulable and instantaneous data protection for shared folders and virtual machines on iSCSI LUNs in the event of disaster.
Synology High Availability
Ensures seamless service transition between clustered servers in the event of a server failure.
Hyper Backup
Store multiple backup versions with block-level incremental data backup and cross-version deduplication.
CMS
Manage multiple Synology NAS servers simultaneously on a centralized interface to increase business efficiency.
Cloud Station Suite
Synchronize cross-platform data automatically with file version control on all your devices.
MailPlus
Secure, reliable, and private mail server solution with an intuitive and modern mail client.

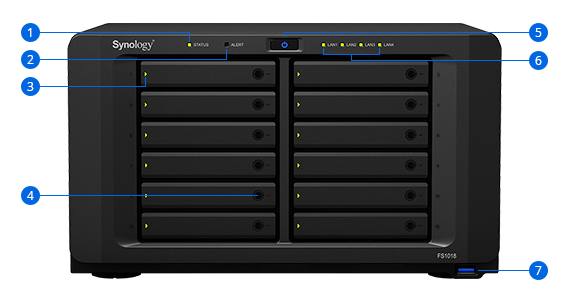

- (1) Status indicator
- (2) Alert indicator
- (3) Drive status indicator
- (4) Drive tray lock
- (5) Power button and indicator
- (6) LAN indicator
- (7) USB 3.0 port

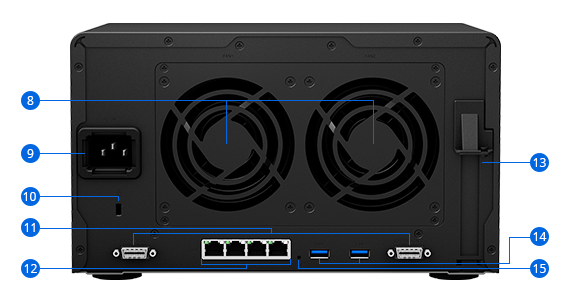

- (8) Fan
- (9) Power port
- (10) Kensington Security Slot
- (11) Expansion port
- (12) 1GbE RJ-45 port
- (13) PCIe 3.0 slot
- (14) USB 3.0 port
- (15) Reset button
Detailed Tech Specification
Hardware Specifications |
|
CPU |
|
| CPU Model | Intel Pentium D1508 |
| CPU Architecture | 64-bit |
| CPU Frequency | Dual Core 2.2 GHz 2.2 (base) / 2.6 (turbo) GHz |
| Hardware Encryption Engine (AES-NI) |
✓ |
Memory |
|
| System Memory | 8 GB DDR4 ECC SO-DIMM |
| Memory Module Pre-installed | 8 GB (8 GB x 1) |
| Total Memory Slots | 2 |
| Memory Expandable up to | 32 GB (16 GB x 2) |
| Notes | Synology reserves the right to replace memory modules with the same or higher frequency based on supplier’s product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. |
Storage |
|
| Drive Bays | 12 |
| Maximum Drive Bays with Expansion Unit | 36 |
| Compatible Drive Type* (See all supported drives) | 2.5″ SATA SSD |
| Maximum Internal Raw Capacity | 48 TB (4 TB drive x 12) (Capacity may vary by RAID types) |
| Maximum Raw Capacity with Expansion Units | 336 TB (48 TB + 12 TB drive x 24) (Capacity may vary by RAID types) |
| Maximum Single Volume Size |
|
| Hot Swappable Drive |
✓ |
| Notes |
|
External Ports |
|
| RJ-45 1GbE LAN Port | 4 (with Link Aggregation / Failover support) |
| USB 3.0 Port | 3 |
| Expansion Port | 2 |
PCIe |
|
| PCIe Expansion | 1 x Gen3 x8 slot (x8 link) |
| Add-in-card support |
|
File System |
|
| Internal Drives |
|
| External Drives |
|
| Notes | exFAT Access is purchased separately in Package Center. |
Appearance |
|
| Size (Height x Width x Depth) | 166 mm x 282 mm x 243 mm |
| Weight | 5.2 kg |
| Notes | The rail kit is sold separatelty. |
Others |
|
| System Fan | 92 mm x 92 mm x 2 pcs |
| Fan Speed Mode |
|
| Easy Replacement System Fan |
✓ |
| Brightness adjustable front LED indicators |
✓ |
| Power Recovery |
✓ |
| Noise Level* | 28.1 dB(A) |
| Scheduled Power On/Off |
✓ |
| Wake on LAN/WAN |
✓ |
| Power Supply Unit / Adapter | 250W |
| AC Input Power Voltage | 100V to 240V AC |
| Power Frequency | 50/60 Hz, Single Phase |
| Power Consumption* | 107.92 W (Access) 48.36 W (HDD Hibernation) |
| British Thermal Unit | 368.45 BTU/hr (Access) 165.12 BTU/hr (HDD Hibernation) |
Environment Temperature |
|
| Operating Temperature | 5°C to 40°C (40°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
| Relative Humidity | 5% to 95% RH |
Certification |
|
Warranty |
5 Years |
Notes |
|
DSM Specifications ( See more ) |
|
Storage Management |
|
| Maximum Internal Volume Number | 1024 |
| Maximum iSCSI Target Number | 256 |
| Maximum iSCSI LUN | 512 |
| iSCSI LUN Clone/Snapshot, Windows ODX |
✓ |
| SSD Read/Write Cache (White Paper) |
✓ |
| SSD TRIM |
✓ |
| RAID Group |
✓ |
| Supported RAID Type |
|
| RAID Migration |
|
| Volume Expansion with Larger HDDs |
|
| Volume Expansion by Adding a HDD |
|
| Global Hot Spare Supported RAID Type |
|
File Services |
|
| File Protocol | CIFS/AFP/NFS/FTP/WebDAV |
| Maximum Concurrent CIFS/AFP/FTP Connections | 2000 |
| Maximum Concurrent CIFS/AFP/FTP Connections (with RAM expansion) | 8000 |
| Windows Access Control List (ACL) Integration |
✓ |
| NFS Kerberos Authentication |
✓ |
Account & Shared Folder |
|
| Maximum Local User Accounts | 16000 |
| Maximum Local Groups | 512 |
| Maximum Shared Folder | 512 |
| Maximum Shared Folder Sync Tasks | 16 |
High Availability Manager |
✓ |
Log Center |
✓ |
| Syslog Events per Second | 3000 |
Virtualization |
|
| VMware vSphere 6 with VAAI |
✓ |
| Windows Server 2012 |
✓ |
| Windows Server 2012 R2 |
✓ |
| Windows Server 2016 |
✓ |
| Citrix Ready |
✓ |
| OpenStack |
✓ |
Add-on Packages (learn more about the complete add-on package list) |
|
Antivirus by McAfee (Trial) |
✓ |
Central Management System |
✓ |
Chat |
✓ |
| Maximum Users | 3000 |
| Notes |
|
Cloud Station Server |
✓ |
| Maximum Number of Concurrently Connected Devices | 2000 |
| Maximum Number of Concurrently Connected Devices (with RAM expansion) | 8000 |
| Maximum Number of Hosted Files (btrfs) | 1,000,000 |
| Maximum Number of Hosted Files (ext4) | 1,000,000 |
| Notes |
|
Document Viewer |
✓ |
Download Station |
✓ |
| Maximum Concurrent Download Tasks | 80 |
exFAT Access (optional) |
✓ |
MailPlus / MailPlus Server |
✓ |
| Free Email Accounts | 5 (Licenses required for additional accounts) |
| Maximum number of concurrent users | Up to 200 |
| Maximum Server Performance | 1,840,000 emails per day, approx. 56GB |
| Notes |
|
Media Server |
✓ |
| DLNA Compliance |
✓ |
Moments |
✓ |
| Facial recognition |
✓ |
| Subject recognition |
✓ |
| Auto Color & Rotate |
✓ |
| Moments Select |
✓ |
PetaSpace |
✓ |
Snapshot Replication |
✓ |
| Maximum Snapshots per Shared Folder | 1024 |
| Maximum of system snapshots | 65536 |
Surveillance Station |
✓ |
| Maximum IP cam (Licenses required) | 75 (including 2 Free License) (See All Supported IP Cameras) |
| Total FPS (H.264)* | 2250 FPS @ 720p (1280×720) 1050 FPS @ 1080p (1920×1080) 600 FPS @ 3M (2048×1536) 450 FPS @ 5M (2591×1944) 320 FPS @ 4K (3840×2160) |
| Total FPS (H.265)* | 2250 FPS @ 720p (1280×720) 2250 FPS @ 1080p (1920×1080) 1125 FPS @ 3M (2048×1536) 600 FPS @ 5M (2591×1944) 500 FPS @ 4K (3840×2160) |
| Total FPS (MJPEG)* | 600 FPS @ 720p (1280×720) 360 FPS @ 1080p (1920×1080) 240 FPS @ 3M (2048×1536) 192 FPS @ 5M (2591×1944) |
| Notes | Surveillance Station throughput is tested with Axis network camera, using continuous recording with live view from Surveillance Station and motion detection by camera. Live view and recording are sharing the same stream from the camera. |
Synology Drive |
✓ |
| Recommended Number of Hosted Files | 1,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above) |
| Recommended Number of Concurrent Connections for PC Clients | 550 (the number of connections that can be maintained when the recommended number of hosted files was reached) |
| Notes |
|
Synology Office |
✓ |
| Maximum Users | 2900 |
| Notes |
|
Video Station |
✓ |
| Video Transcoding | Group 1 – Type 1 (See more) |
| Maximum Transcoding Channel Number | 1 channel, 30 FPS @ 1080p(1920×1080), H.264 (AVC)/MPEG-4 Part 2 (XVID, DIVX5)/MPEG-2/VC-1 |
Virtual Machine Manager |
✓ |
| Recommended Virtual Machine Instances | 4 (Learn more) |
| Recommended Virtual DSM Number(Licenses required) | 4 (including 1 Free License) |
| Notes |
|
VPN Server |
✓ |
| Maximum Connections | 40 |
Environment & Packaging |
|
Environment |
RoHS Compliant |
Packaging Content |
|
Optional Accessories |
|
| Notes | If multiple memory modules of different frequency are installed in the same system, all memory modules will be operated at the lowest frequency available. |
