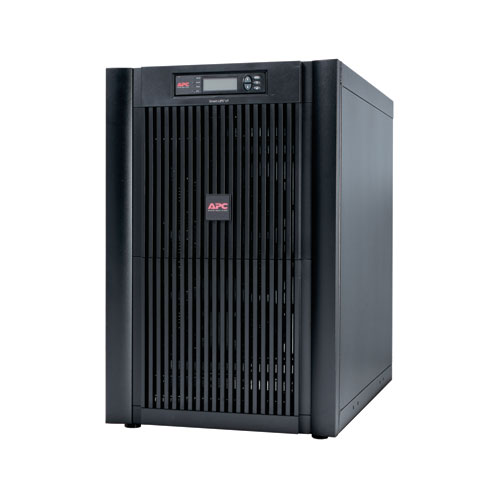

APC Smart-UPS VT 30kVA 400V, w/Start-Up 5X8, Internal Maintenance Bypass, & Parallel Capability – SUVTP30KHS
AED 29,307.00 excl. VAT
For Immediate delivery requirement contact sales team. Ex-Stock Usually Ship in 1 -3 days, Back to Back 4-8 Weeks. Images are for illustration purposes only and may differ from actual product.
Includes: Bolt Down Brackets , CD with software , Installation Guide , Network Management Card , Power modules ship installed , Start-Up Service , User Manual
Out of stock product
APC Smart-UPS VT 30kVA 400V, w/Start-Up 5X8, Internal Maintenance Bypass, & Parallel Capability – SUVTP30KHS
Overview
SUVTP30KHS Features
APC Smart-UPS VT 30kVA 400V, w/Start-Up 5X8, Internal Maintenance Bypass, & Parallel Capability
-
Parallel-capacity capableIncreases total power capacity by using multiple uninterruptible power supplies simultaneously.
-
Parallel-redundant capablePower the connected equipment with multiple uninterruptible power supplies to increase system redundancy
Smart-UPS VTFeatures & Benefits
Serviceability
-
Automatic self-testPeriodic battery self-test ensures early detection of a battery that needs to be replaced.
-
Battery replacement without toolsEnables fast battery replacement, lowering Mean Time to Repair (MTTR).
-
Modular designProvides fast serviceability and reduced maintenance requirements via self-diagnosing, field-replaceable modules.
-
Shippable with modules installedEnables pre-installation UPS staging and testing and faster installation.
Marketing Features
-
Network manageableProvides remote power management of the UPS over the network.
-
Input power factor correctionMinimizes installation costs by enabling the use of smaller generators and cabling.
-
Hot-swappable batteriesEnsures clean, uninterrupted power to protected equipment while batteries are being replaced
-
Scalable runtimeAllows additional run time to be quickly added as needed.
-
Dual mains inputIncreases availability by allowing the UPS to be connected to two separate power sources.
-
Manual maintenance bypassReduces installation costs by eliminating the need for an external mechanical bypass.
Sustainability
-
EU CoC for UPSEnsures that UPSs sold in the EU are highly efficient
Availability
-
Battery modules connected in parallelDelivers higher availability through redundant batteries.
-
Automatic internal bypassSupplies utility power to the connected loads in the event of a UPS power overload or fault.
-
Dual mains inputIncreases availability by allowing the UPS to be connected to two separate power sources.
-
Scalable runtimeAllows additional run time to be quickly added as needed.
-
Generator compatibleEnsures clean, uninterrupted power to protected equipment when generator power is used.
Manageability
-
SmartSlotCustomize UPS capabilities with management cards.
-
LED status indicatorsQuickly understand unit and power status with visual indicators.
-
LCD displayAlpha-Numeric Display which displays system parameters and alarms.
-
Audible alarmsProvides notification of changing utility power and UPS power conditions
-
InfraStruXure Manager CompatibleEnables centralized management via the APC InfraStruXure Manager.
-
Network manageableProvides remote power management of the UPS over the network.
-
Programmable frequencyEnsures compatibility with different input frequencies.
Total Cost of Ownership
-
Intelligent battery managementMaximizes battery performance, life, and reliability through intelligent, precision charging.
-
Manual maintenance bypassReduces installation costs by eliminating the need for an external mechanical bypass.
-
Temperature-compensated battery chargingProlongs battery life by regulating the charge voltage according to battery temperature.
-
Input power factor correctionMinimizes installation costs by enabling the use of smaller generators and cabling.
Protection
-
Cold-start capableProvides temporary battery power when the utility power is out.
-
Safety-agency approvedEnsures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
-
Frequency and voltage regulationGives higher application availability by correcting poor frequency and voltage conditions without using the battery.
Detailed Tech Specification
Output
-
Output power capacity
24.0 KWatts / 30.0 kVA
-
Max Configurable Power (Watts)
24.0 KWatts / 30.0 kVA
-
Nominal Output Voltage
400V 3PH
-
Output Voltage Note
Configurable for 380 : 400 or 415 V 3 Phase nominal output voltage
-
Efficiency at Full Load
96.4 %
-
Output Voltage Distortion
Less than 5% at full load
-
Output Frequency (sync to mains)
47 – 53 Hz for 50 Hz nominal
-
Output Frequency (not synced)
50Hz +/- 0.1% for 50Hz nominal
-
Other Output Voltages
380, 415
-
Load Crest Factor
3 : 1
-
Topology
Double Conversion Online
-
Waveform type
Sine wave
-
Maximum Output Current
48
-
Bypass
Built-in Maintenance Bypass, Built-in Static Bypass
Input
-
Nominal Input Voltage
400V 3PH
-
Input frequency
47 – 70 Hz (auto sensing)
-
Input Connections
Hard Wire 5-wire (3PH + N + G)
-
Input voltage range for main operations
304 – 477V
-
Efficiency at Full Load
96.4 %
-
Other Input Voltages
380, 415
-
Maximum Input Current
41.0A
-
Input Power Factor at Full Load
0.98
Batteries & Runtime
-
Battery type
No internal battery – uses external battery system
Communications & Management
-
Interface Port(s)
DB-9 RS-232 , SmartSlot
-
Pre-Installed SmartSlot™ Cards
-
Control panel
Multi-function LCD status and control console
-
Audible Alarm
Audible and visible alarms prioritized by severity
-
Emergency Power Off (EPO)
Yes
Physical
-
Maximum Height
823mm , 82.3CM
-
Maximum Width
523mm , 52.3CM
-
Maximum Depth
813mm , 81.3CM
-
Net Weight
182.5KG
-
Shipping weight
221.5KG
-
Shipping Height
1290mm , 129.0CM
-
Shipping Width
720mm , 72.0CM
-
Shipping Depth
1110mm , 111.0CM
Environmental
-
Operating Temperature
0 – 40 °C
-
Operating Relative Humidity
0 – 95 %
-
Operating Elevation
0-999.9meters
-
Storage Temperature
0 – 40 °C
-
Storage Relative Humidity
0 – 95 %
-
Storage Elevation
0-3000meters
-
Audible noise at 1 meter from surface of unit
55.0dBA
-
Protection Class
IP 20
