Synology FlashStation FS2017 24-Bay – FS2017
AED 24,590.00 excl. VAT
For the Immediate delivery requirement contact sales team. Usually Ship in 2-3 days Back to Back 2-3 Weeks, images are for illustration purposes only, Image may differ from actual product.
Out of stock product
Synology FlashStation FS2017 24-Bay – FS2017
FlashStation FS2017
High performance all-flash NAS designed for I/O-intensive and latency-sensitive applications
Overview
Faster performance, greater scalability, and easier management
Synology FlashStation FS2017 is a high performance 24-bay rackmount NAS designed for 2.5″ SSDs. FS2017 brings easy to manage, lightning-fast storage, perfect for video post-productions, mail servers, virtualization environments, and database applications.
CPU
Intel® Xeon® D-1541 8-core processor
Memory
16GB DDR4 ECC RDIMM up to 128GB
High Performance
Up to 90,000 iSCSI 4K random write IOPS
Scalability
Up to 72 drives with RX2417sas1
Who is using Synology?
Watch how our solutions empower businesses around the world with limitless possibilities.
The storage array has been proven to be more than capable of going toe-to-toe with what would be classed as an enterprise-class all flash array for a fraction of the cost.
Mark Pearce, IT Infrastructure Manager, Mantra Group
The Synology FlashStation FS2017 is on par with leading storage platforms in the market in terms of system stability and technical capability, but is much more cost-effective with its all-flash storage system and flexible SSD configuration.
Zhu Qihong, Assistant Manager, Human Resources Department, Taishin Holdings
5 year warranty
Synology’s 5-year limited warranty provides hardware replacement and technical support via email and telephone services, maximizing your enterprises’ return on investment.
Synology Replacement Service (SRS)
SRS provides free advance replacement units as early as the next business day in selected regions, maximizing the service uptime for your mission-critical storage and ensuring your business continuity2.Check service availability here.
RAID F1
Due to the peculiarities of SSD and RAID technology, a common challenge lies in how to prevent all of the drives from failing at the same time because of the evenly distributed workload. RAID F1 alleviates this problem with a specially designed algorithm to unevenly distribute workload to drives, enhancing the resilience of the storage pool and ensuring your data remains safe.
See the white paper for more technical details regarding RAID F1
Compared with traditional RAID, RAID F1 distributes uneven workload to SSDs to prevent all drives from wearing out simultaneously.
Fast and reliable networking
With the multi-LAN design, FS2017 is capable of performing Link Aggregation and failover. For environments requiring a higher speed, an optional Ethernet add-on card can be installed into the PCIe slot, providing fast data transmission of 40GbE/25GbE/10GbE.
Btrfs: Next generation storage efficiency
Btrfs file system introduces the most advanced storage technologies to meet the management needs of modern large scale businesses:
Flexible Shared Folder/User Quota System provides comprehensive quota control on all user accounts and shared folders
Snapshot Replication provides schedulable and storage capacity-saving data protection with 1,024 shared folder backups and 65,000 system-wide snapshots
File or folder level data restoration makes data recovery fast and flexible
Automatic file self-healing detects and recovers corrupted files without user intervention
Fully certified storage virtualization solutions
Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.
Powered by Synology DSM
Snapshot Replication
Provides schedulable and instantaneous data protection for shared folders and virtual machines on iSCSI LUNs in the event of disaster.
Synology High Availability
Ensures seamless service transition between clustered servers in the event of a server failure.
Hyper Backup
Store multiple backup versions with block-level incremental data backup and cross-version deduplication.
CMS
Manage multiple Synology NAS servers simultaneously on a centralized interface to increase business efficiency.
Cloud Station Suite
Synchronize cross-platform data automatically with file version control on all your devices.
MailPlus
Secure, reliable, and private mail server solution with an intuitive and modern mail client.

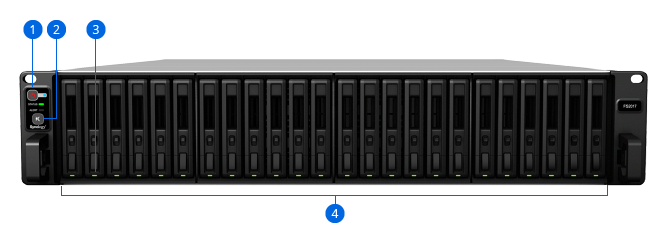

- (1) Power button and indicator
- (2) Beep off button
- (3) Drive status indicator
- (4) Drive tray

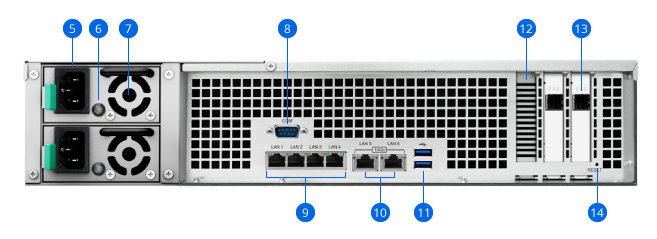

- (5) Power port
- (6) PSU indicator
- (7) PSU fan
- (8) Console port
- (9) 1GbE RJ-45 port
- (10) 10GbE RJ-45 port
- (11) USB 3.0 port
- (12) PCIe 3.0 slot
- (13) Expansion port
- (14) Reset button
Detailed Tech Specification
Hardware Specifications |
|
CPU |
|
| CPU Model | Intel Xeon D-1541 |
| CPU Architecture | 64-bit |
| CPU Frequency | 8-Core 2.1 (base) / 2.7 (turbo) GHz |
| Hardware Encryption Engine (AES-NI) |
✓ |
Memory |
|
| System Memory | 16 GB DDR4 ECC RDIMM |
| Memory Module Pre-installed | 16 GB (16 GB x 1) |
| Total Memory Slots | 4 |
| Memory Expandable up to | 128GB (32 GB x 4) |
| Notes | Synology reserves the right to replace memory modules with the same or higher frequency based on supplier’s product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. |
Storage |
|
| Drive Bays | 24 |
| Maximum Drive Bays with Expansion Unit | 48 (RX1217sas) / 72 (RX2417sas) |
| Compatible Drive Type* (See all supported drives) |
|
| Maximum Internal Raw Capacity | 96 TB (4 TB drive x 24) (Capacity may vary by RAID types) |
| Maximum Raw Capacity with Expansion Units | 288 TB (96 TB + 4 TB drive x 48) (Capacity may vary by RAID types) |
| Maximum Single Volume Size |
|
| Hot Swappable Drive |
✓ |
| Notes |
|
External Ports |
|
| RJ-45 1GbE LAN Port | 4 (with Link Aggregation / Failover support) |
| RJ-45 10GbE LAN Port | 2 (with Link Aggregation / Failover support) |
| USB 3.0 Port | 2 |
| Expansion Port | 1 |
PCIe |
|
| PCIe Expansion | 1 x Gen3 x8 slot (x8 link) |
| Add-in-card support |
|
| Notes | FS2017 with M2D18 can only support M.2 SATA SSD. M.2 NVMe/AHCI PCIe SSD is not supported. |
File System |
|
| Internal Drives |
|
| External Drives |
|
| Notes | exFAT Access is purchased separately in Package Center. |
Appearance |
|
| Size (Height x Width x Depth) | 88 mm x 482 mm x 724 mm |
| Weight | 14.9 kg |
| Rack Installation Support | 4-post 19″ rack (Synology Rail Kit – RKS1317) |
| Notes | The rail kit is sold separatelty. |
Others |
|
| System Fan | 80 mm x 80 mm x 4 pcs |
| Fan Speed Mode |
|
| Easy Replacement System Fan |
✓ |
| Power Recovery |
✓ |
| Noise Level* | 57 dB(A) |
| Scheduled Power On/Off |
✓ |
| Wake on LAN/WAN |
✓ |
| Power Supply Unit / Adapter | 2 X 500W |
| AC Input Power Voltage | 100V to 240V AC |
| Power Frequency | 50/60 Hz, Single Phase |
| Power Consumption* | 313 W (Access) 126 W (HDD Hibernation) |
| British Thermal Unit | 1068 BTU/hr (Access) 430 BTU/hr (HDD Hibernation) |
| Redundant Power Supply (for xs+ and RP model) |
✓ |
Environment Temperature |
|
| Operating Temperature | 5°C to 35°C (40°F to 95°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
| Relative Humidity | 5% to 95% RH |
Certification |
|
Warranty |
5 Years |
Notes |
|
DSM Specifications ( See more ) |
|
Storage Management |
|
| Maximum Internal Volume Number | 1024 |
| Maximum iSCSI Target Number | 256 |
| Maximum iSCSI LUN | 512 |
| iSCSI LUN Clone/Snapshot, Windows ODX |
✓ |
| SSD Read/Write Cache (White Paper) |
✓ |
| SSD TRIM |
✓ |
| RAID Group |
✓ |
| Supported RAID Type |
|
| RAID Migration |
|
| Volume Expansion with Larger HDDs |
|
| Volume Expansion by Adding a HDD |
|
| Global Hot Spare Supported RAID Type |
|
File Services |
|
| File Protocol | CIFS/AFP/NFS/FTP/WebDAV |
| Maximum Concurrent CIFS/AFP/FTP Connections | 4000 |
| Maximum Concurrent CIFS/AFP/FTP Connections (with RAM expansion) | 10000 |
| Windows Access Control List (ACL) Integration |
✓ |
| NFS Kerberos Authentication |
✓ |
Account & Shared Folder |
|
| Maximum Local User Accounts | 16000 |
| Maximum Local Groups | 512 |
| Maximum Shared Folder | 512 |
| Maximum Shared Folder Sync Tasks | 32 |
High Availability Manager |
✓ |
Log Center |
✓ |
| Syslog Events per Second | 3000 |
Virtualization |
|
| VMware vSphere 6 with VAAI |
✓ |
| Windows Server 2012 |
✓ |
| Windows Server 2012 R2 |
✓ |
| Windows Server 2016 |
✓ |
| Citrix Ready |
✓ |
| OpenStack |
✓ |
Add-on Packages (learn more about the complete add-on package list) |
|
Antivirus by McAfee (Trial) |
✓ |
Central Management System |
✓ |
Chat |
✓ |
| Maximum Users | 6000 |
| Notes |
|
Cloud Station Server |
✓ |
| Maximum Number of Concurrently Connected Devices | 16000 |
| Maximum Number of Concurrently Connected Devices (with RAM expansion) | 30000 |
| Maximum Number of Hosted Files (btrfs) | 3,000,000 |
| Maximum Number of Hosted Files (ext4) | 3,000,000 |
| Notes |
|
exFAT Access (optional) |
✓ |
MailPlus / MailPlus Server |
✓ |
| Free Email Accounts | 5 (Licenses required for additional accounts) |
| Maximum number of concurrent users | Up to 1100 |
| Maximum Server Performance | 4,471,000 emails per day, approx. 136GB |
| Notes |
|
| Auto Color & Rotate |
✓ |
| Moments Select |
✓ |
Snapshot Replication |
✓ |
| Maximum Snapshots per Shared Folder | 1024 |
| Maximum of system snapshots | 65536 |
Surveillance Station |
✓ |
| Maximum IP cam (Licenses required) | 100 (including 2 Free License) (See All Supported IP Cameras) |
| Total FPS (H.264)* | 3000 FPS @ 720p (1280×720) 2800 FPS @ 1080p (1920×1080) 1200 FPS @ 3M (2048×1536) 700 FPS @ 5M (2591×1944) 500 FPS @ 4K (3840×2160) |
| Total FPS (H.265)* | 3000 FPS @ 720p (1280×720) 3000 FPS @ 1080p (1920×1080) 2400 FPS @ 3M (2048×1536) 1300 FPS @ 5M (2591×1944) 800 FPS @ 4K (3840×2160) |
| Total FPS (MJPEG)* | 1300 FPS @ 720p (1280×720) 700 FPS @ 1080p (1920×1080) 500 FPS @ 3M (2048×1536) 400 FPS @ 5M (2591×1944) |
| Notes | Surveillance Station throughput is tested with Axis network camera, using continuous recording with live view from Surveillance Station and motion detection by camera. Live view and recording are sharing the same stream from the camera. |
Synology Drive |
✓ |
| Recommended Number of Hosted Files | 5,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above) |
| Recommended Number of Concurrent Connections for PC Clients | 2,000 (the number of connections that can be maintained when the recommended number of hosted files was reached) |
| Notes |
|
Synology Office |
✓ |
| Maximum Users | 3400 |
| Notes |
|
Virtual Machine Manager |
✓ |
| Recommended Virtual Machine Instances | 16 (Learn more) |
| Recommended Virtual DSM Number(Licenses required) | 16 (including 1 Free License) |
| Notes |
|
VPN Server |
✓ |
| Maximum Connections | 40 |
Environment & Packaging |
|
Environment |
RoHS Compliant |
Packaging Content |
|
Optional Accessories |
|
| Notes | If multiple memory modules of different frequency are installed in the same system, all memory modules will be operated at the lowest frequency available. |
