Synology RackStation RS4017xs+ 16-Bay NAS – RS4017xs+
RackStation RS4017xs+
Highly scalable NAS designed for virtualization, data-intensive applications and service continuity for large scale businesses
Overview
Powerful storage solution
RS4017xs+ provides rock-solid storage solution with ultra-high performance at over 240,079 random read IOPS and 6,221 MB/s sequential read throughput1. DDR4 ECC UDIMM and 10GbE connectivity guarantees data accuracy and performance for mission-critical environment.
CPU
Intel® Xeon® D-1541 8-core processor
RAM options
8 GB DDR4 ECC UDIMM, up to 64 GB
Network
Two 10GBase-T ports, optional 10GbE NIC support
Chassis
3U chassis design, 16 SATA drive bays
Robust scalability and reliability
Storage capacity of RS4017xs+ can be further scaled up when connected to two Synology Expansion Unit RX1217 or RX1217RP1, providing a total drive number of 40 without disrupting host services.
5 year warranty
Synology’s 5-year limited warranty provides hardware replacement and technical support via email and telephone services, maximizing your enterprises’ return on investment.
Synology Replacement Service (SRS)
SRS provides free advance replacement units as early as the next business day in selected regions, maximizing the service uptime for your mission-critical storage and ensuring your business continuity2. Know more about SRS.
Fully certified storage virtualization solutions
Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.
Btrfs: Next generation storage efficiency
Btrfs file system introduces the most advanced storage technologies to meet the management needs of modern large scale businesses:
Flexible Shared Folder/User Quota System provides comprehensive quota control on all user accounts and shared folders
Snapshot Replication provides schedulable and storage capacity-saving data protection with 1,024 shared folder backups and 65,000 system-wide snapshots
File or folder level data restoration makes data recovery fast and flexible
Automatic file self-healing detects and recovers corrupted files without user intervention
Powered by Synology DSM
Synology High Availability
Ensures seamless service transition between clustered servers in the event of a server failure.
Hyper Backup
Store multiple backup versions with block-level incremental data backup and cross-version deduplication.
Cloud Station Suite
Synchronize cross-platform data automatically with file version control on all your devices.
CMS
Manage multiple Synology NAS servers simultaneously on a centralized interface to increase business efficiency.
MailPlus
Secure, reliable, and private mail server solution with an intuitive and modern mail client.
Collaboration Suite
Synology Office, Calendar and Chat guarantee a secure and high-performance private communication and user-friendly content organization.

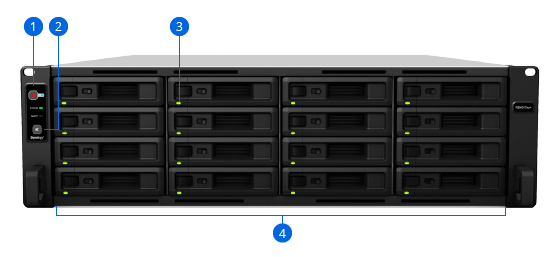

- (1) Power button and indicator
- (2) Beep off button
- (3) Drive status indicator
- (4) Drive tray
- (5) PSU fan
- (6) Power Port
- (7) PSU indicator
- (8) Console port
- (9) 1GbE RJ-45 port
- (10) 10GbE RJ-45 port
- (11) USB 3.0 port
- (12) Expansion port
- (13) PCIe 3.0 slot
- (14) Reset button
Detailed Tech Specification
Hardware Specifications |
|
CPU |
|
| CPU Model | Intel Xeon D-1541 |
| CPU Architecture | 64-bit |
| CPU Frequency | 8-Core 2.1 (base) / 2.7 (turbo) GHz |
| Hardware Encryption Engine (AES-NI) |
✓ |
Memory |
|
| System Memory | 8 GB DDR4 ECC UDIMM |
| Memory Module Pre-installed | 8 GB (8 GB x 1) |
| Total Memory Slots | 4 |
| Memory Expandable up to | 64 GB (16 GB x 4) |
| Notes | Synology reserves the right to replace memory modules with the same or higher frequency based on supplier’s product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. |
Storage |
|
| Drive Bays | 16 |
| Maximum Drive Bays with Expansion Unit | 40 |
| Compatible Drive Type* (See all supported drives) |
|
| Maximum Internal Raw Capacity | 224 TB (14 TB drive x 16) (Capacity may vary by RAID types) |
| Maximum Raw Capacity with Expansion Units | 560 TB (224 TB + 14 TB drive x 24) (Capacity may vary by RAID types) |
| Maximum Single Volume Size |
|
| Hot Swappable Drive |
✓ |
| Notes |
|
External Ports |
|
| RJ-45 1GbE LAN Port | 4 (with Link Aggregation / Failover support) |
| RJ-45 10GbE LAN Port | 2 (with Link Aggregation / Failover support) |
| USB 3.0 Port | 2 |
| Expansion Port | 2 |
PCIe |
|
| PCIe Expansion | 2 x Gen3 x8 slots (x8 link) |
| Add-in-card support |
|
| Notes | RS4017xs+ with M2D18 can only support M.2 SATA SSD. M.2 NVMe/AHCI PCIe SSD is not supported. |
File System |
|
| Internal Drives |
|
| External Drives |
|
| Notes | exFAT Access is purchased separately in Package Center. |
Appearance |
|
| Size (Height x Width x Depth) | 132.3 mm x 482 mm x 656.5 mm |
| Weight | 17.4 kg |
| Rack Installation Support | 4-post 19″ rack (Synology Rail Kit – RKS1317) |
| Notes | The rail kit is sold separatelty. |
Others |
|
| System Fan | 80 mm x 80 mm x 3 pcs |
| Fan Speed Mode |
|
| Easy Replacement System Fan |
✓ |
| Power Recovery |
✓ |
| Noise Level* | 44.7 dB(A) |
| Scheduled Power On/Off |
✓ |
| Wake on LAN/WAN |
✓ |
| Power Supply Unit / Adapter | 2 x 800W |
| AC Input Power Voltage | 100V to 240V AC |
| Power Frequency | 50/60 Hz, Single Phase |
| Power Consumption* | 136.4 W (Access) 69.2 W (HDD Hibernation) |
| British Thermal Unit | 465.7 BTU/hr (Access) 236.3 BTU/hr (HDD Hibernation) |
| Redundant Power Supply (for xs+ and RP model) |
✓ |
Environment Temperature |
|
| Operating Temperature | 5°C to 35°C (40°F to 95°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
| Relative Humidity | 5% to 95% RH |
Certification |
|
Warranty |
5 Years |
Notes |
|
DSM Specifications ( See more ) |
|
Storage Management |
|
| Maximum Internal Volume Number | 1024 |
| Maximum iSCSI Target Number | 256 |
| Maximum iSCSI LUN | 512 |
| iSCSI LUN Clone/Snapshot, Windows ODX |
✓ |
| SSD Read/Write Cache (White Paper) |
✓ |
| SSD TRIM |
✓ |
| RAID Group |
✓ |
| Supported RAID Type |
|
| RAID Migration |
|
| Volume Expansion with Larger HDDs |
|
| Volume Expansion by Adding a HDD |
|
| Global Hot Spare Supported RAID Type |
|
File Services |
|
| File Protocol | CIFS/AFP/NFS/FTP/WebDAV |
| Maximum Concurrent CIFS/AFP/FTP Connections | 2000 |
| Maximum Concurrent CIFS/AFP/FTP Connections (with RAM expansion) | 10000 |
| Windows Access Control List (ACL) Integration |
✓ |
| NFS Kerberos Authentication |
✓ |
Account & Shared Folder |
|
| Maximum Local User Accounts | 16000 |
| Maximum Local Groups | 512 |
| Maximum Shared Folder | 512 |
| Maximum Shared Folder Sync Tasks | 32 |
High Availability Manager |
✓ |
Log Center |
✓ |
| Syslog Events per Second | 3000 |
Virtualization |
|
| VMware vSphere 6 with VAAI |
✓ |
| Windows Server 2012 |
✓ |
| Windows Server 2012 R2 |
✓ |
| Windows Server 2016 |
✓ |
| Citrix Ready |
✓ |
| OpenStack |
✓ |
Add-on Packages (learn more about the complete add-on package list) |
|
Antivirus by McAfee (Trial) |
✓ |
Central Management System |
✓ |
Chat |
✓ |
| Maximum Users | 6000 |
| Notes |
|
Cloud Station Server |
✓ |
| Maximum Number of Concurrently Connected Devices | 2000 |
| Maximum Number of Concurrently Connected Devices (with RAM expansion) | 10000 |
| Maximum Number of Hosted Files (btrfs) | 3,000,000 |
| Maximum Number of Hosted Files (ext4) | 3,000,000 |
| Notes |
|
Document Viewer |
✓ |
Download Station |
✓ |
| Maximum Concurrent Download Tasks | 80 |
exFAT Access (optional) |
✓ |
MailPlus / MailPlus Server |
✓ |
| Free Email Accounts | 5 (Licenses required for additional accounts) |
| Maximum number of concurrent users | Up to 1100 |
| Maximum Server Performance | 4,312,000 emails per day, approx. 131GB |
| Notes |
|
Media Server |
✓ |
| DLNA Compliance |
✓ |
Moments |
✓ |
| Facial recognition |
✓ |
| Subject recognition |
✓ |
| Auto Color & Rotate |
✓ |
| Moments Select |
✓ |
PetaSpace |
✓ |
Snapshot Replication |
✓ |
| Maximum Snapshots per Shared Folder | 1024 |
| Maximum of system snapshots | 65536 |
Surveillance Station |
✓ |
| Maximum IP cam (Licenses required) | 90 (including 2 Free License) (See All Supported IP Cameras) |
| Total FPS (H.264)* | 2700 FPS @ 720p (1280×720) 2250 FPS @ 1080p (1920×1080) 900 FPS @ 3M (2048×1536) 800 FPS @ 5M (2591×1944) 440 FPS @ 4K (3840×2160) |
| Total FPS (H.265)* | 2700 FPS @ 720p (1280×720) 2700 FPS @ 1080p (1920×1080) 2340 FPS @ 3M (2048×1536) 1260 FPS @ 5M (2591×1944) 800 FPS @ 4K (3840×2160) |
| Total FPS (MJPEG)* | 1200 FPS @ 720p (1280×720) 600 FPS @ 1080p (1920×1080) 350 FPS @ 3M (2048×1536) 220 FPS @ 5M (2591×1944) |
| Notes | Surveillance Station throughput is tested with Axis network camera, using continuous recording with live view from Surveillance Station and motion detection by camera. Live view and recording are sharing the same stream from the camera. |
Synology Drive |
✓ |
| Recommended Number of Hosted Files | 5,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above) |
| Recommended Number of Concurrent Connections for PC Clients | 2,000 (the number of connections that can be maintained when the recommended number of hosted files was reached) |
| Notes |
|
Synology Office |
✓ |
| Maximum Users | 2900 |
| Notes |
|
Video Station |
✓ |
| Video Transcoding | Group 1 – Type 1 (See more) |
| Maximum Transcoding Channel Number | 1 channel, 30 FPS @ 1080p(1920×1080), H.264 (AVC)/MPEG-4 Part 2 (XVID, DIVX5)/MPEG-2/VC-1 |
Virtual Machine Manager |
✓ |
| Recommended Virtual Machine Instances | 16 (Learn more) |
| Recommended Virtual DSM Number(Licenses required) | 16 (including 1 Free License) |
| Notes |
|
VPN Server |
✓ |
| Maximum Connections | 40 |
Environment & Packaging |
|
Environment |
RoHS Compliant |
Packaging Content |
|
Optional Accessories |
|
| Notes | If multiple memory modules of different frequency are installed in the same system, all memory modules will be operated at the lowest frequency available. |
